This product is a reticle for pattern projectors. There are six different designs available.
Custom
sizes and patterns can also be produced. Please feel free to contact us.
- Material: Soda-lime glass
- Specification: Blue chromium oxide printing
Price List
| Model Number |
ER-90D |
ER-180D |
ER-270D |
| Dimensions |
φ25 mm (Thickness 1.0 mm) |
φ25 mm (Thickness 1.0 mm) |
φ25 mm (Thickness 1.0 mm) |
| List Price |
20,000 yen |
20,000 yen |
20,000 yen |
| Detailed Drawing |
|
|
|
| Model Number |
ER-S1 |
ER-S2 |
ER-S3 |
| Dimensions |
φ25 mm (Thickness 1.0 mm) |
φ25 mm (Thickness 1.0 mm) |
φ25 mm (Thickness 1.0 mm) |
| List Price |
20,000 yen |
20,000 yen |
20,000 yen |
| Detailed Drawing |
|
|
|
ER-90D
ER-180D
ER-270D

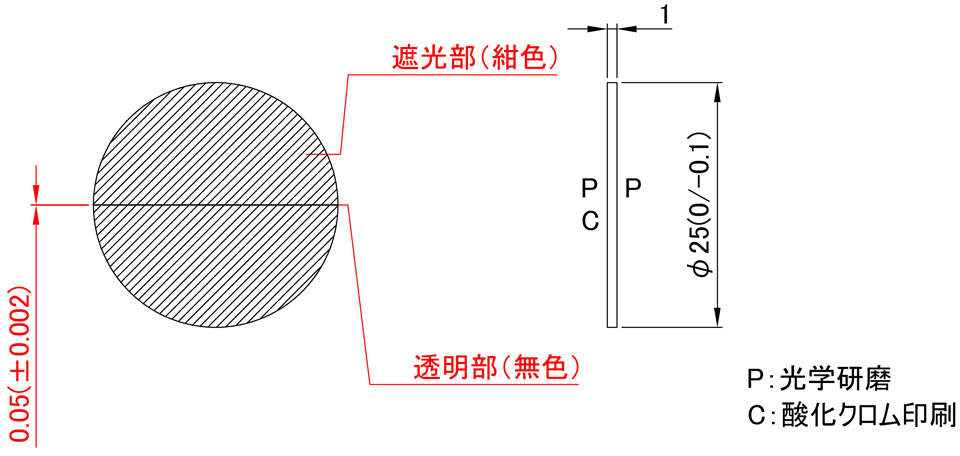

ER-S1
ER-S2
ER-S3
