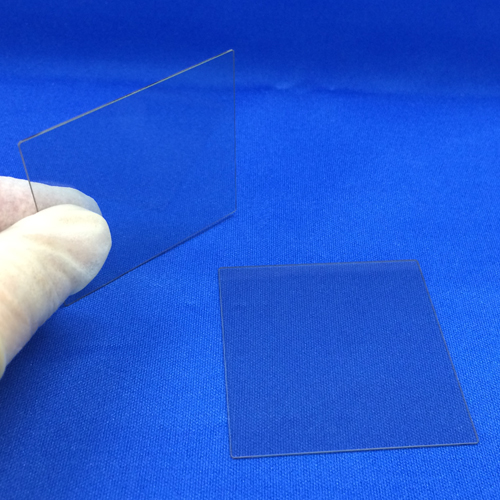

SCHOTT ND Filter (Absorption type)

ND Filter : List

Size, thickness, round shape as well as transmission can be modified according to your request up to maximum 165 mm square.

* If you are looking for thickness priority, please refer to this page.

ND5AS

ND30AS

ND80AS

* The arrival of SCHOTT materials NG1, NG4, NG9 is undecided. Please contact us for the arrival time.

Dimensional Tolerance: ±0.2 mm, Thickness tolerance: ±0.4 mm

Model number	Transmission (550 nm)	Optical Density (OD)	Material	Dimension	List price (excl. tax)
ND001AS	0.01 ±0.01 ％	4	NG1	50 x 50 x 1.0 mm	8,500 yen
ND003AS	0.03 ±0.01 ％	3.5	NG1	50 x 50 x 0.8 mm	8,500 yen
ND01AS	0.1 ±0.05 ％	3	NG1	50 x 50 x 0.6 mm	8,500 yen
ND03AS	0.3 ±0.1 ％	2.5	NG1	50 x 50 x 0.5 mm	8,500 yen
ND1AS	1 ±0.5 ％	2	NG9	50 x 50 x 1.4 mm	8,500 yen
ND3AS	3 ±0.5 ％	1.5	NG9	50 x 50 x 1.1 mm	8,500 yen
ND5AS	5 ±1 ％	1.3	NG9	50 x 50 x 0.9 mm	8,500 yen
ND10AS	10 ±2 ％	1	NG3	50 x 50 x 1.0 mm	8,500 yen
ND15AS	15 ±2 ％	0.8	NG4	50 x 50 x 1.4 mm	8,500 yen
ND20AS	20 ±2 ％	0.7	NG4	50 x 50 x 1.3 mm	8,500 yen
ND25AS	25 ±2.5 ％	0.6	NG4	50 x 50 x 1.1 mm	8,500 yen
ND30AS	30 ±3 ％	0.5	NG4	50 x 50 x 0.9 mm	8,500 yen
ND35AS	35 ±3 ％	0.45	NG4	50 x 50 x 0.8 mm	8,500 yen
ND40AS	40 ±4 ％	0.4	NG4	50 x 50 x 0.7 mm	8,500 yen
ND50AS	50 ±5 ％	0.3	NG5	50 x 50 x 1.1 mm	8,500 yen
ND60AS	60 ±5 ％	0.2	NG5	50 x 50 x 0.8 mm	8,500 yen
ND70AS	70 ±5 ％	0.15	NG11	50 x 50 x 1.1 mm	8,500 yen
ND80AS	80 ±5 ％	0.1	NG11	50 x 50 x 0.6 mm	8,500 yen
