Shibuya Optical Co., Ltd.

HOME
Microscope
Objective Micrometer
Product details
Detailed drawings of OBJT001 and OBJT002

Detailed drawings of OBJT001 and OBJT002

Overall view

OBJT001 and OBJT002 : Overall view

Specifications of four patterns

* Click on the Drawing to enlarge it.

Scale	□20 um	□100 um	□500 um	1 mm
Grid size	0.02 x 0.02 (±0.002) mm	0.10 x 0.10 (±0.005) mm	0.50 x 0.50 (±0.01) mm	1.00 x 1.00 (±0.01) mm
Grid division	500 x 500	100 x 100	20 x 20	10 x 10
Cross division	-	-	200	100
Drawing	Enlarged of the above	Enlarged of the above	Enlarged of the above	Enlarged of the above
Partial enlarged	Partial enlarged	Center part	Center part	Center part

Grid Scale for Stereomicroscope □20 um

□20 um　Drawing

□20 um : Drawing

□20 um　Partial enlarged

□20 um : Partial enlarged

Grid Scale for Stereomicroscope □100 um

□100 um　Drawing

□100 um : Drawing

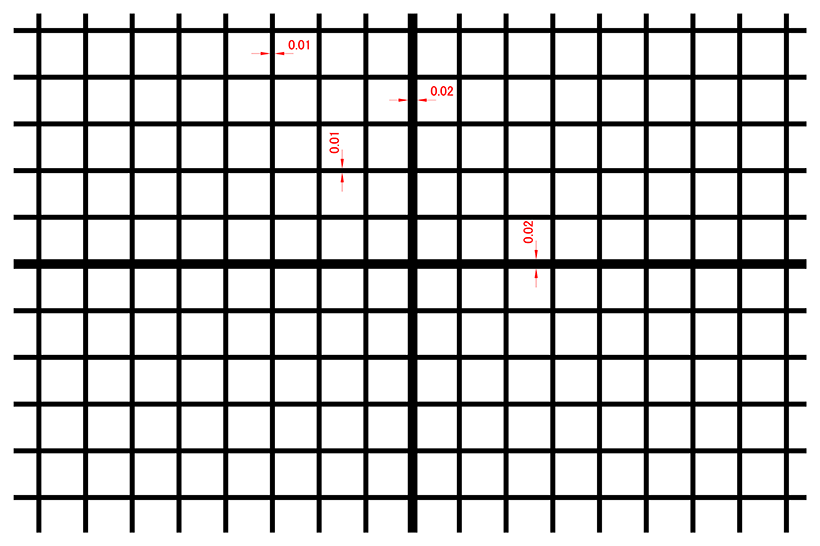

□100 um　Center part

□100 um:Center part

Grid Scale for Stereomicroscope □500 um

□500 um　Drawing

□500 um : Drawing

□500 um　Center part

□500 um : Center part

Grid Scale for Stereomicroscope 1 mm

1 mm　Drawing

1 mm : Drawing

1 mm Center part

1 mm : Center part

To top
