ND Filter: List

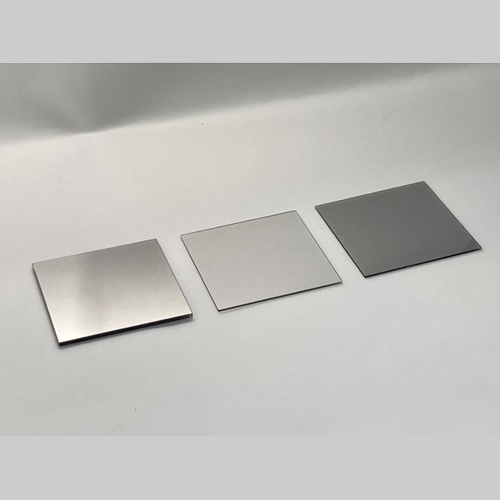

Fused Silica ND Filter (Reflection type)

Inquiry
NDフィルター：ND5AS
NDフィルター：ND30AS
NDフィルター：ND80AS

Reference drawing (ND01T2-152S)

Reference drawing: ND01T2-152S

Price list

Dimensional Tolerance 50 x 50 mm: ±0.2 mm、152 x 152 mm: ±1.2 mm
Model number Transmission
(550nm)		 Dimension Thickness List price(excl. tax) Characteristic Curve
ND01T1-50S 1±0.3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND01-50S
ND01T1-152S 152 x 152 mm 30,000 yen
ND01T2-50S 50 x 50 mm 2 mm 8,000 yen
ND01T2-152S 152 x 152 mm 30,000 yen
ND05T1-50S 5±1％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND05-50S
ND05T1-152S 152 x 152 mm 30,000 yen
ND05T2-50S 50 x 50 mm 2 mm 8,000 yen
ND05T2-152S 152 x 152 mm 30,000 yen
ND08T2-50S 8±1％ 50 x 50 mm 2 mm 8,000 yen Characteristic Curve：ND08-50S
ND08T2-152S 152 x 152 mm 30,000 yen
ND10T1-50S 10±1％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND10-50S
ND10T1-152S 152 x 152 mm 30,000 yen
ND10T2-50S 50 x 50 mm 2 mm 8,000 yen
ND10T2-152S 152 x 152 mm 30,000 yen
ND20T1-50S 20±3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND20-50S
ND20T1-152S 152 x 152 mm 30,000 yen
ND20T2-50S 50 x 50 mm 2 mm 8,000 yen
ND20T2-152S 152 x 152 mm 30,000 yen
ND25T1-50S 25±3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND25-50S
ND25T1-152S 152 x 152 mm 30,000 yen
ND25T2-50S 50 x 50 mm 2 mm 8,000 yen
ND25T2-152S 152 x 152 mm 30,000 yen
ND30T1-50S 30±3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND30-50S
ND30T1-152S 152 x 152 mm 30,000 yen
ND30T2-50S 50 x 50 mm 2 mm 8,000 yen
ND30T2-152S 152 x 152 mm 30,000 yen
ND40T1-50S 40±3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND40-50S
ND40T1-152S 152 x 152 mm 30,000 yen
ND40T2-50S 50 x 50 mm 2 mm 8,000 yen
ND40T2-152S 152 x 152 mm 30,000 yen
ND50T1-50S 50±3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND50-50S
ND50T1-152S 152 x 152 mm 30,000 yen
ND50T2-50S 50 x 50 mm 2 mm 8,000 yen
ND50T2-152S 152 x 152 mm 30,000 yen
ND60T1-50S 60±3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND60-50S
ND60T1-152S 152 x 152 mm 30,000 yen
ND60T2-50S 50 x 50 mm 2 mm 8,000 yen
ND60T2-152S 152 x 152 mm 30,000 yen
ND70T1-50S 70±3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND70-50S
ND70T1-152S 152 x 152 mm 30,000 yen
ND70T2-50S 50 x 50 mm 2 mm 8,000 yen
ND70T2-152S 152 x 152 mm 30,000 yen
ND80T1-50S 80±3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND80-50S
ND80T1-152S 152 x 152 mm 30,000 yen
ND80T2-50S 50 x 50 mm 2 mm 8,000 yen
ND80T2-152S 152 x 152 mm 30,000 yen
ND90T1-50S 90±3％ 50 x 50 mm 1 mm 8,000 yen Characteristic Curve：ND90-50S
ND90T1-152S 152 x 152 mm 30,000 yen
ND90T2-50S 50 x 50 mm 2 mm 8,000 yen
ND90T2-152S 152 x 152 mm 30,000 yen
